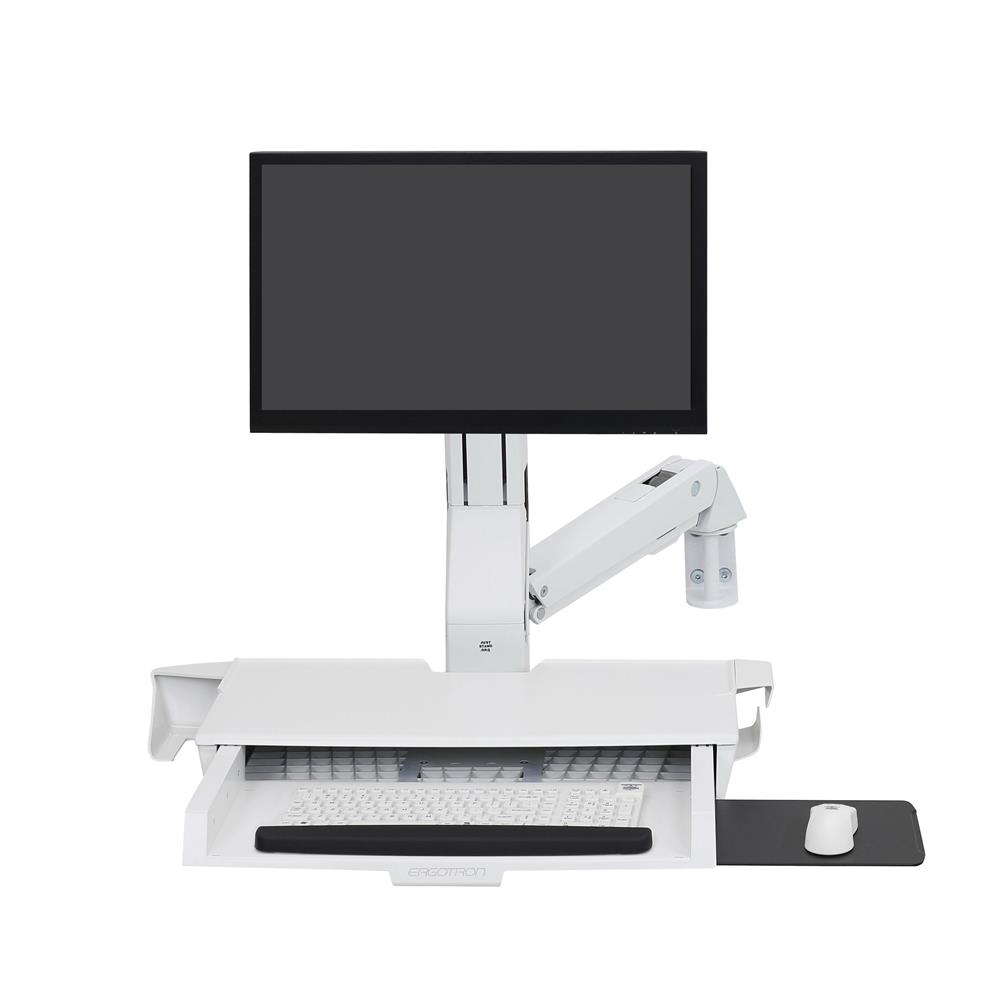

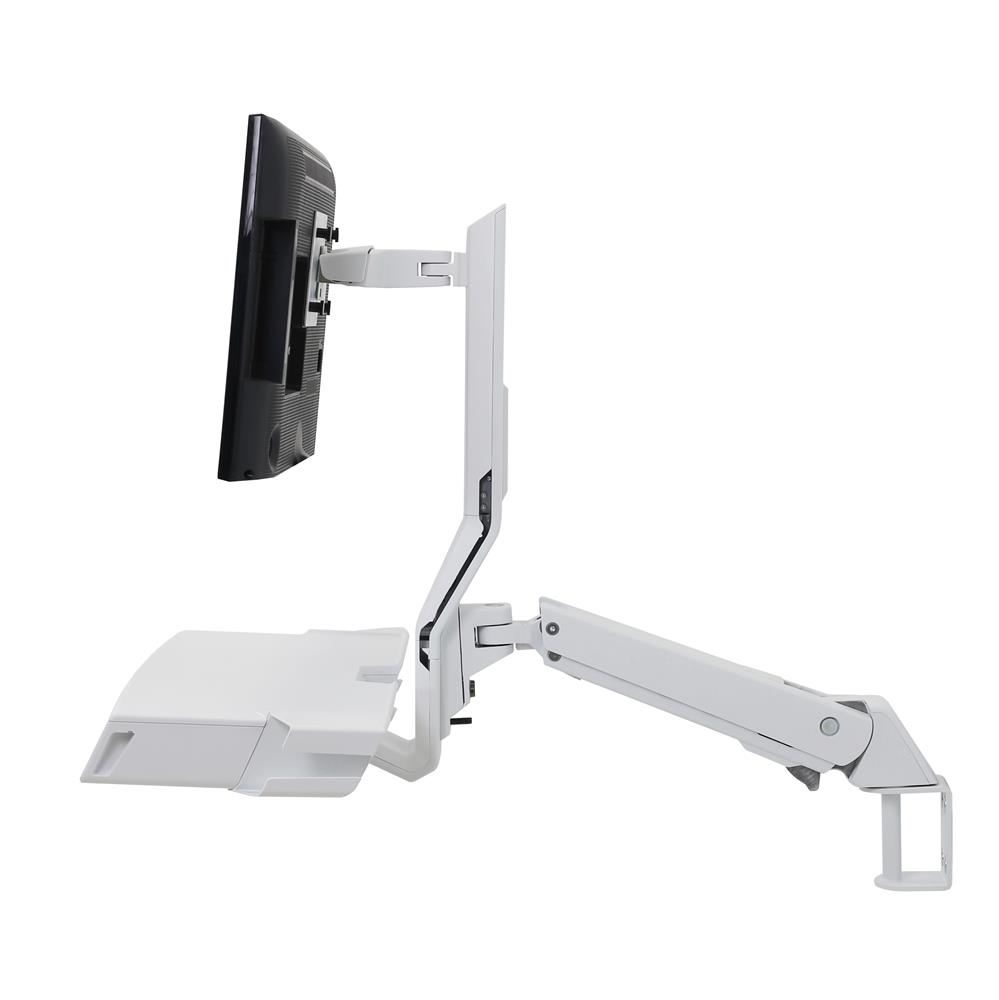

Ergotron SV Combo Arm with Worksurface & Pan - White

Let caregivers in your healthcare organization work sitting or standing with everything they need at their fingertips. This sit-stand combo arm holds a monitor, barcode scanner, keyboard, wrist rest and mouse, plus a sturdy worksurface, all on the same height-adjustable arm. The pan-pivot feature moves the monitor up to 180° to easily share information with patients or colleagues and for an ergonomic fit that supports the best workflows (and comfort).

Product Features:

• Comfortable documentation - Work sitting or standing with 20" (51 cm) of height adjustment
• Personalized fit - Independent screen adjustment, plus monitor and keyboard extension
• Ergonomic set-up - Back-tilt keyboard tray protects wrists from pain or injury
• Infection control- Offers easy-to-clean features and antimicrobial-treated surfaces
• Save space - Fold the arm out of the way and stow the keyboard when not in use
• Clean look- Cables stay hidden and organized for easy cleaning

Technical Specifications:

• Part Numbers (color): 45-583-216 (white)
• Description: StyleView Combo Arm with Worksurface
• Durable, easy-to-clean exterior composed of high-grade plastic
• Weight Capacity: display = 6–18 lbs (2.7–8.2 kg); worksurface = 10 lbs (4.5 kg); keyboard, mouse and barcode scanner = 4 lbs (1.8 kg)
• Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
• Pan Range: Arm can turn 360° side to side; LCD can turn 180° independently
• Patented CF™ lift-and-pivot motion technology
• Mounting Standards: VESA FDMI, MIS-D, 75/100, C (hole patterns = 100 x 100 mm and 75 x 75 mm)
• Integrated mouse and barcode scanner holder provide easy access
• Fold-down worksurface / keyboard tray to support workflow needs. Worksurface is 22.75"W x 10.6"D (57.8 x 26.9 cm). Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm). Maximum allowable keyboard height = 1.35" (3.4 cm)
• To increase extension range, also order SV Extender (see Accessories)
• Can be configured to hold a laptop instead of an LCD display; also order Notebook Tray (see Accessories)
• Product Weight: 32 lbs (14.6 kg)
• Shipping Dimensions: 26.5" x 26.2" x 11.5" (67 x 67 x 29 cm)
• Shipping Weight: 40 lbs (18 kg)
• Warranty: Five (5) years
